# Authentication

Ristecho API uses Access Tokens to authenticate requests.

Ristecho API uses OAuth2.0 Code Grant Authorization to enable your application to obtain Access Token. For detailed guide, please visit OAuth 2.0 Code Grant Flow

Authorization is required in all API requests and is added as a header

Authorization: Bearer ACCESS_TOKEN

Note: The word Bearer in Authorization is case sensitive, using bearer will result in authorization error

An Access Token is restricted by Scopes, learn more in Scopes

Access Tokens carry many privileges, so be sure to keep them secure! Do not share your secret Access Token in publicly accessible areas such as public documents, client-side code, and so forth.

Sample Request with Authorization Header

curl -X GET \
  URL/api/branches \
  -H 'Authorization: Bearer eyJ0eXAiOiJKV1Qi...' \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json'

# OAuth 2.0 Code Grant Flow

OAuth 2.0 Code Grant is a protocol that lets your app request authorization to access data in a user's account without accessing their password. Your app requests specific permission scopes and is granted an authorization code upon a user's approval. Your app will use the authorization code to request an access token, which will be used to access the user's data

You'll need to create an app before getting started. Each app is assigned a unique Client ID and Client Secret which will be used in the OAuth flow. The Client Secret is private and should not be shared.

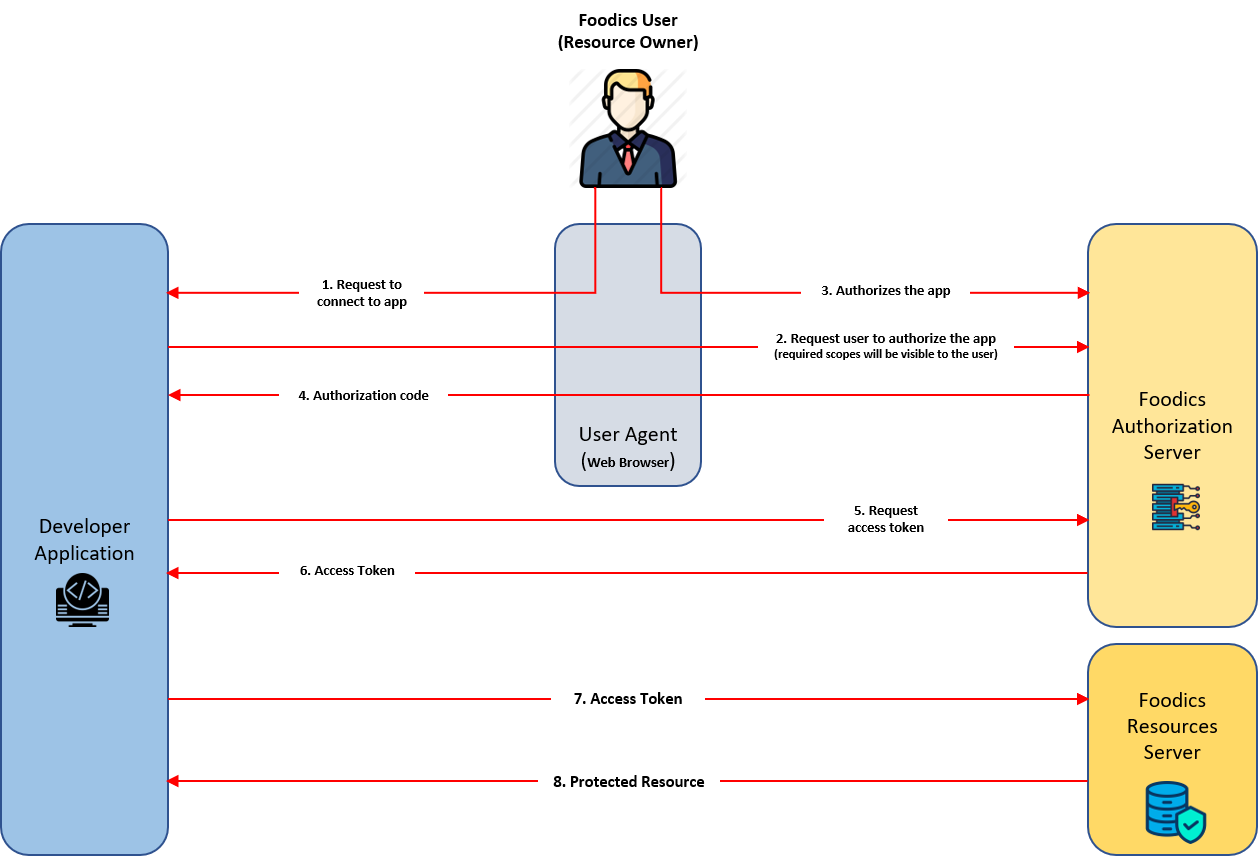

OAuth 2.0 Code Grant Flow

# Detailed Process

# 1. The user requests to connect to your app

Once your app is live on Ristecho apps store, the user will be able to see its details and connect to it. There will be a button that the user clicks to request to connect to your app. Once pressed, the OAuth flow will start.

# 2. Your App will Request Authorization from User

Your app will request authorization from user in order to proceed with the authorization flow. The scopes that the apps need will be presented to the user. The user will be asked if he/she is willing to give your app access to the requested scopes.

# 3. The User Authorizes your App

If user agreed to authorize your app, Ristecho will redirect the user to your redirect link with an authorization code. If user rejected to authorize your app, the OAuth flow will end and the user will not be able to connect to your app.

# 4. Your App will Exchange the Authorization Code for an Access Token

Once your app obtains the authorization code upon user authorization, your app will use the given authorization code to request an access token from Ristecho authorization server

Note: Authorization code lifetime is 600 seconds. After that, the authorization code will expire and won't be valid to be used to generate access token

# 5. Requesting Access Token

The request should include the following parameters:

grant_type, this is to identify the grant type as OAuth 2.0 supports multiple grant types. Ristecho uses grant type authorization_code only
code, the authorization code your app obtained upon user authorization
client_id, your app client id, given to you by Ristecho team when creating your app
client_secret, your app secret, given to you by Ristecho team when creating your app
redirect_uri, must be the same redirect uri you redirected the user to during user authorization (step 2)

Sample Request

curl -X POST \
  URL/oauth/token \
  -H 'Content-Type: application/json' \
  -d '{
    "grant_type": "authorization_code",
    "code": "def50206ed2c3dff808d16ff54904e.........",
    "client_id": "8f1ad782-3e35-4576-a0bb-d4f419b80a77",
    "client_secret": "wFakBkhMu7oIxWUPexHwLvdmx8romv52fucl5r8c",
    "redirect_uri":"https://yourapp.com"
}'

# 6. The Authorization Server will Return an Access Token

If your request to get access token is valid, the authorization server will return an access token. If your request is invalid, the authorization server will return an error message

Sample Response on valid request

{
    "token_type": "Bearer",
    "access_token": "eyJ0eXAiOiJKV1QiLvRH..........."
}

token_type: always Bearer (case sensitive)
access_token: the token that will allow you to access user data

# 7. Your App will Use the Access Token to Access User Data

Now that your app has obtained the access token, you will be able to access user data. The data your app can access depends on the scopes your app is authorized on

Sample Request

curl -X GET \
  URL/addresses \
  -H 'Accept: application/json' \
  -H 'Authorization: Bearer eyJ0eXAiOiJ.............' \
  -H 'Content-Type: application/json'

# 8. The Resources Server will Return the Requested Data

If the requested data is within your app scopes, the server will return the requested data. If requested data is out of your app scopes, server will return an authorization error

Sample Response on valid request

{
  "data": [
    {
      "id": "8d92cc27-5429-4c66-a840-bf2f7360f756",
      "name": "Work Address",
      "description": "15688 Kohler Ceceliaville, RI 90603",
      "latitude": "26.295234",
      "longitude": "4.076668",
      "created_at": "2019-04-30 09:24:58",
      "updated_at": "2019-05-28 09:35:02",
      "deleted_at": null
    }
  ]
}
